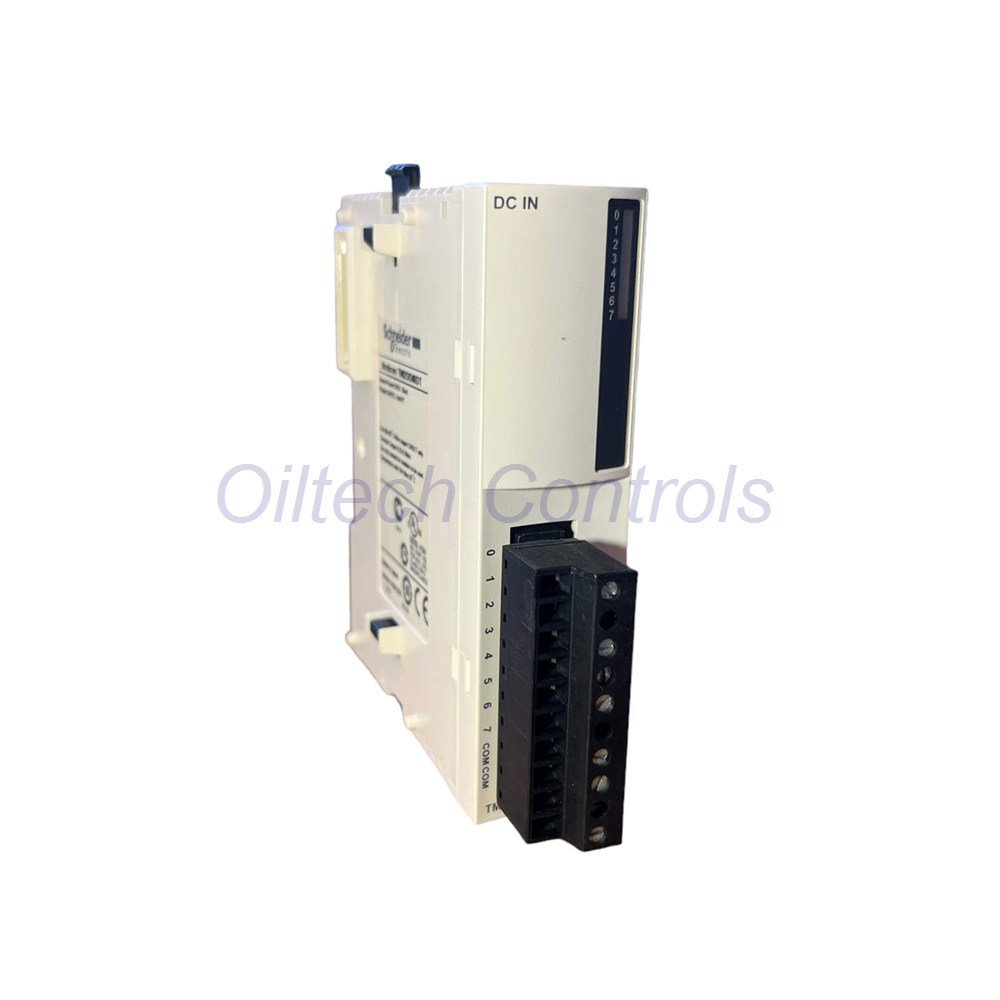

Schneider Electric TM2DRA16RT Modicon M238 Discrete Output Module

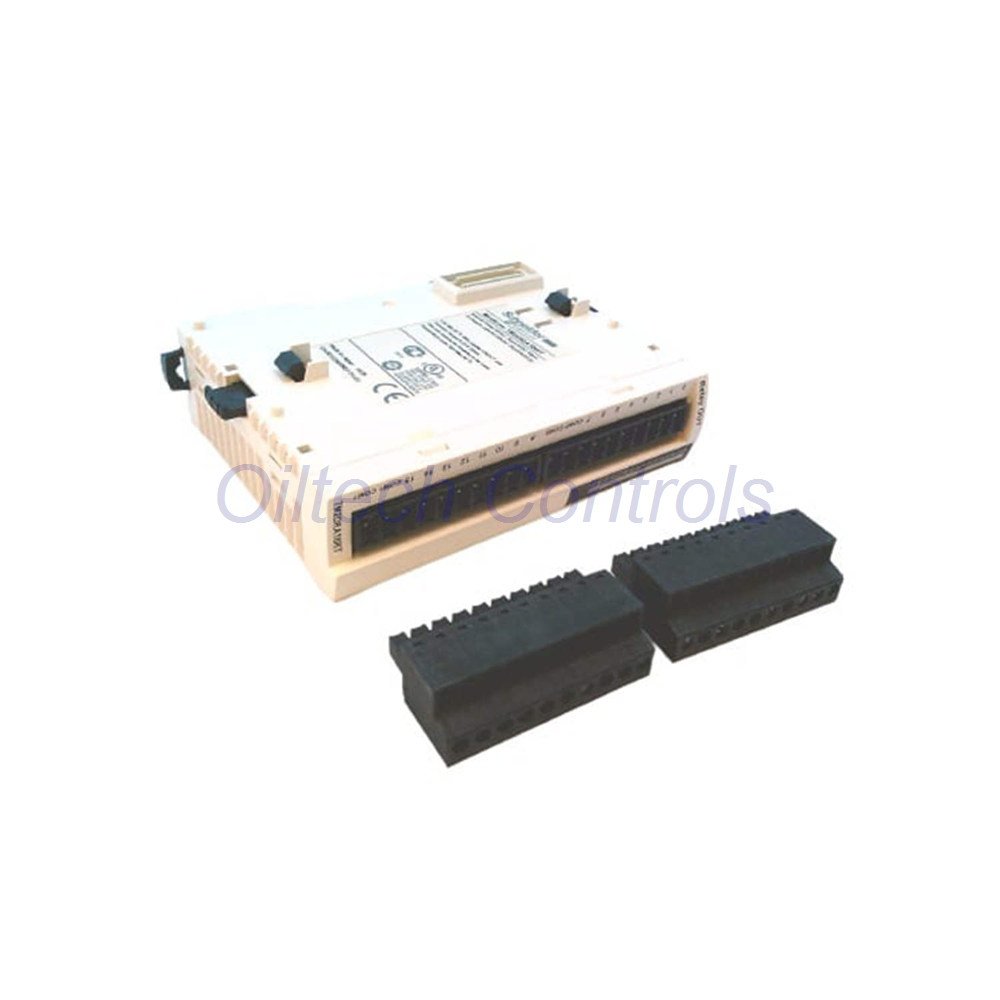

TM2DRA16RT OverviewOiltech Controls presents the Schneider Electric TM2DRA16RT, a robust 16-channel discrete output module. This unit optimizes signal management for your Modicon M238 logic controller systems. Engineers trust this reliable hardware for demanding industrial automation and precise control applications.Core Technical SpecificationsBrand: Schneider ElectricModel: TM2DRA16RTProduct Type: Discrete Relay Output ModuleOutput Channels: 16 independent points with 2 common groupsCurrent Rating: 2A per channel and 8A per common pointResponse Time: ≤10ms (OFF to ON) and ≤5ms (ON to OFF)Isolation Voltage: 1500V between channels and 2300V against internal logicMechanical Life: Up to 20,000,000 operation cyclesDesign and InstallationTerminal Connection: Includes a removable screw terminal block for rapid wiringMounting Standard: Fits standard 35mm symmetrical DIN rails securelyPhysical Dimensions: Compact 90mm height, 27.3mm width, and 84.6mm depthWeight: Lightweight design at only 0.145kg for easy cabinet integrationLocal Interface: Features a dedicated display block for real-time status signalingOperational DurabilityElectrical Life: Achieves 100,000 cycles at 2A resistive load (30V DC or 240V AC)Contact Resistance: Maintains low impedance at ≤45 mOhm for stable signalsEnvironmental Status: Green Premium certified for sustainability and regulatory complianceCompatibility: Works seamlessly with Modicon M238, Advantys OTB, and Twido seriesDirect Inquiries: Contact our technical team at [email protected] for project support.Shipping and LogisticsGlobal Delivery: We ship via reliable carriers including FedEx, UPS, and DHLPackaging Contents: One TM2DRA16RT module and one removable terminal block setOrder Assistance: Reach out via WhatsApp at 86 158 8020 0923 for shipping quotesGlobal Reach: We expedite all orders to ensure minimal downtime for your facilitySupport: Our team handles all logistics inquiries with professional speed and accuracyTechnical FAQQuestion: Can I use this module for inductive loads?Answer: Yes, it supports inductive loads with specific cycle ratings like 1A AC-15.Question: What is the minimum switching current required?Answer: You need at least 0.1mA at 0.1V DC for reliable contact operation.Question: Should I use external fusing for the outputs?Answer: Always protect your outputs with external fuses to prevent relay contact damage.Question: How do I confirm the module is powered correctly?Answer: Monitor the local display block on the front of the unit for status.Question: Does the module require specific software configuration?Answer: Yes, you must define the module in your PLC configuration software properly.Copyright © 2026 Oiltech Controls Limited. All rights reserved. Original Source: https://www.oiltechcontrols.com/ All rights reserved.
