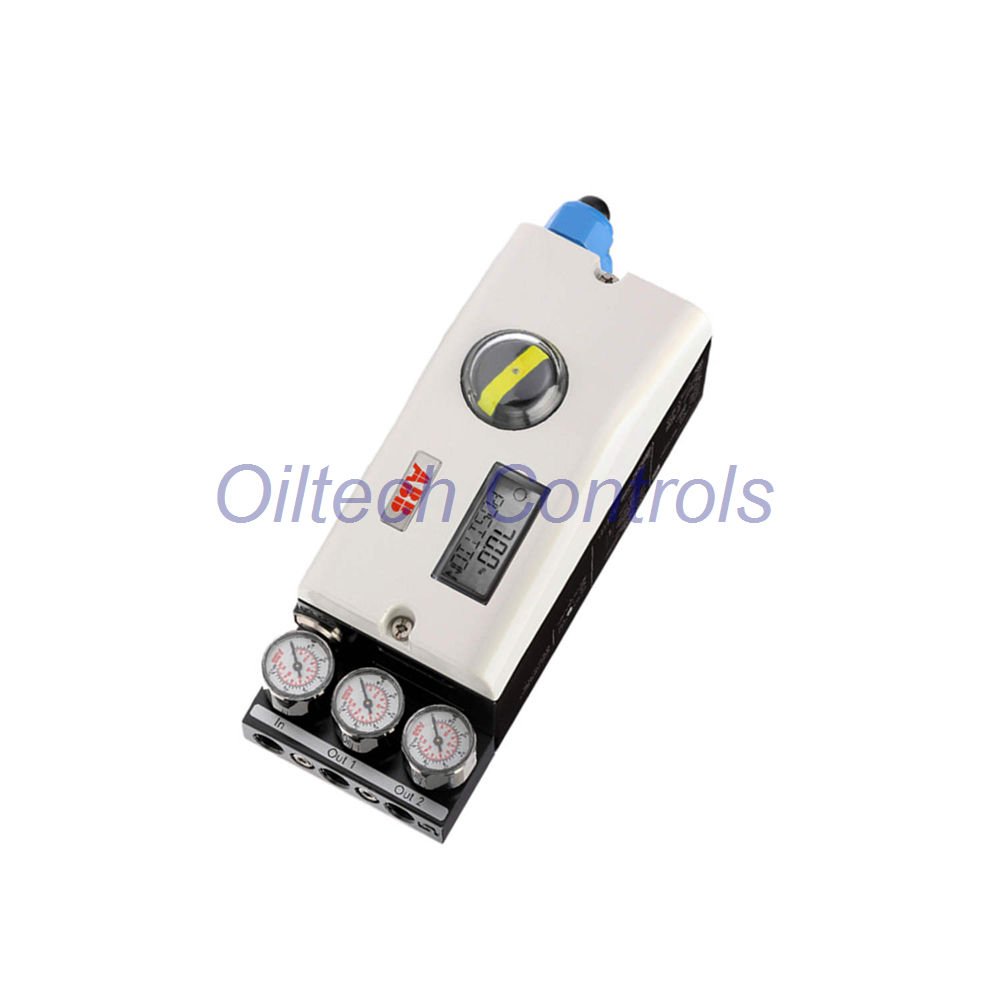

ABB TZIDC-200 V18348-10111310110 Flameproof HART Positioner

ABB TZIDC-200 V18348-10111310110 Engineering OverviewThe ABB TZIDC-200 V18348-10111310110 represents a highly precise, software-configurable electronic positioning instrument designed for pneumatic valve actuators.The device integrates advanced microprocessor control algorithms to achieve near-zero hysteresis and dynamic response optimization.Its robust flameproof housing ensures safe operation within hazardous areas while supporting continuous bidirectional fieldbus communication via standard HART protocol layers.For complete wiring schematics, dimensional footprint data, and full configuration parameters, engineers should download the original manufacturer installation manual and comprehensive technical data sheet.Technical Specifications MatrixBrand and Designation: ABB TZIDC-200 Series (Specific Configuration: V18348-10111310110)Input Setpoint Range: Continuous 4 to 20 mA analog signal, supporting split-range operations down to a 20% minimum span (3.2 mA)Linearity and Dead Band: Dead band tightly controlled at 0.1% with a configurable tolerance band factory set at 0.3%Dynamic Response: Microprocessor-driven adaptive control with real-time automatic tuning based on actuator volume and friction profilesExplosion Protection Classification: Certified ATEX Ex d II C T4/T5/T6 Gb for hazardous, flameproof deployment environmentsEnclosure Engineering: Varnished aluminum chassis, engineered to resist heavy marine atmospheres and extreme high-vibration industrial environmentsPneumatic Configuration: Single-acting pneumatic system featuring a mechanical fail-safe state that exhausts air upon electrical loop lossFeedback Output Interface: Integrated plug-in option module delivering isolated two-wire 4 to 20 mA analog position verificationProcess Connections: Dual electrical conduit ports tapped at 1/2-14 NPT alongside pneumatic air supply connections tapped at 1/4-18 NPTConfiguration Suffix Tree BreakdownV18348 — Base Smart Positioner Platform Architecture10 — Chassis Material & Bracket Mounting Configuration: Varnished aluminum structural enclosure, tailored for DIN / IEC 534 NAMUR linear valve stems or VDI / VDE 3845 rotary actuator shaft interfaces1 — HMI Human Machine Interface: Integrated LCD viewscreen with built-in push-button operator keypad1 — Hazardous Area Safety Certification: Full ATEX Ex d II C T4/T5/T6 Gb explosion-proof execution1 — Pneumatic Action & Emergency State: Single-acting output with direct fail-safe venting capability3 — Port Dimension Standards: 1/2-14 NPT electrical conduit entries with 1/4-18 NPT air lines1 — Analog/Digital Signal Feedback Subsystem: Factory-installed 4 to 20 mA continuous two-wire feedback transmitter0 — Auxiliary Mechanical Switch Gear: Standard configuration without auxiliary mechanical limit switch kits1 — Bus Management Address Defaults: Programmed with factory default parameters optimized for HART networks1 — Exterior Coating & Coding Identity: Standard industrial paint finish and internal software coding version0 — Tagging Customization: Factory standard external labeling without specific user asset taggingOnboard Diagnostics and Security LayerThe internal microprocessor tracks operational data to provide predictive maintenance diagnostics.The device continually calculates travel time trends, stiction parameters, and valve cycle counts to identify mechanical issues before failure.A localized digital output acts as a collective alarm relay, instantly changing state if internal diagnostics detect pressure drop failures or tracking deviations.Security is maintained via a 24 V DC digital hardware input loop.Interrupting this 24 V DC safety signal lock (< 10 V DC) forces the positioner to execute a pre-defined hardware override action, such as locking the pilot assembly or driving the valve to 100% open.Oiltech Controls Limited’s InsightOur instrumentation engineers value the ABB TZIDC-200 series, particularly the V18348-10111310110 profile, for its balance of field resilience and control precision.In high-vibration environments, standard mechanical positioners experience linkage wear that causes signal drift.The V18348 eliminates this failure mode through its non-contacting sensor option compatibility and digital filtering algorithms.The flameproof Ex d enclosure allows direct installation in critical process zones without adding expensive intrinsic safety isolation barriers inside the control room cabinet.This specific configuration provides independent 4-20 mA verification feedback, simplifying loop tuning and safety integration within older legacy systems.Target Equipment Compatibility & ApplicationsSevere Service Control Valves: Fits high-pressure globe valves, eccentric plug valves, and balanced cage-guided control assembliesQuarter-Turn Process Automation: Direct coupling to heavy-duty scotch-yoke or rack-and-pinion actuators powering butterfly and ball valvesPetrochemical Processing Skids: Ideal for refinery distillation units, offshore oil platforms, and volatile gas blending systemsPower Generation Systems: Manages high-temperature boiler feedwater regulators, steam conditioning lines, and cooling tower valvesProcurement Logistics and Warranty ProfileInventory Condition: Authentically 100% brand new, verified original component secured inside standard factory packaging layersCommercial Warranty Terms: Covered by an explicit 12-month factory-backed engineering warranty against manufacturing defectsGlobal Freight Logistics: Dispatched globally using premium express air freight networks including FedEx, DHL, and UPSOrder Turnaround Timeline: Shipments leave our fulfillment centers within 24 to 48 hours following verified commercial checkoutABB Positioner Selection & Buying GuideConfirm Housing Safety Code: Verify that your facility zone classification allows flameproof Ex d enclosures rather than requiring intrinsic safety Ex i.Audit the Pneumatic Supply Quality: Ensure your instrument air supply system meets ISO 8573-1 Class 1 standards for solid particles and oil content to prevent pilot valve fouling.Cross-Reference Signal Requirements: Confirm that your automation network uses analog 4-20 mA lines with HART overlay rather than pure digital networks like Profibus or Foundation Fieldbus.Match Mechanical Stroke Limits: Ensure your actuator’s physical stroke or angular rotation matches the minimum 20% sensor travel limit of this digital instrument.For technical engineering support or pricing inquiries: [email protected] | WhatsApp: 86 158 8020 0923Copyright © 2026 Oiltech Controls Limited. All rights reserved.Original Source: https://www.oiltechcontrols.com/ All rights reserved.
