TM5SDI12D Schneider Electric Modicon TM5 Digital Input Module

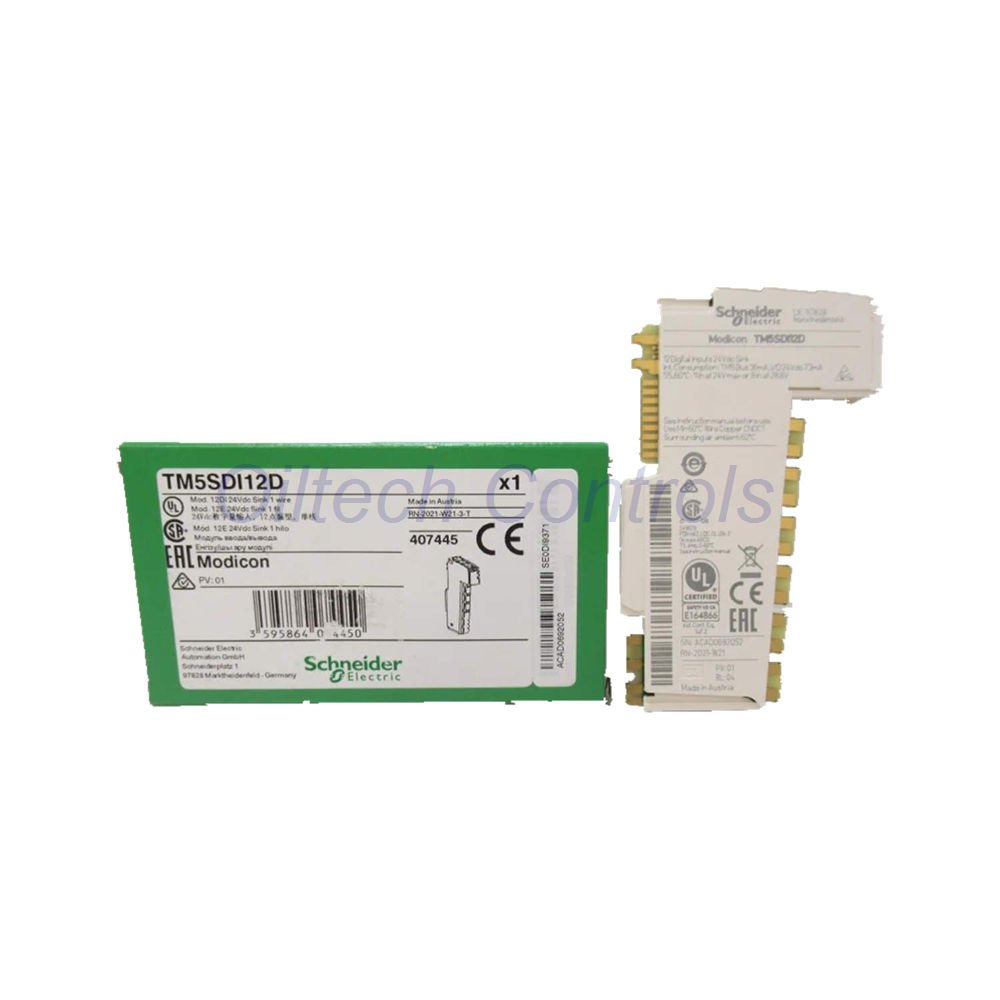

Schneider TM5SDI12D Digital Input Module OverviewThe Schneider TM5SDI12D digital input module serves as a robust interface for industrial control systems.Engineered for the Modicon series, this unit provides 12 high-speed digital inputs for your machinery.Oiltech Controls offers this high-quality component to optimize your motion control and logic operations today.You can reach our team via email at [email protected] for technical support.Please contact us through WhatsApp at 86 158 8020 0923 for immediate assistance.Core Technical SpecificationsBrand & Model: Schneider TM5SDI12D, a premium Modicon digital input module.Input Logic: The module supports 24V DC Sink logic for versatile integration requirements.Input Capacity: Experience reliable signal processing with 12 dedicated discrete input channels.Signal Thresholds: The unit guarantees stable State 0 at <= 5V and State 1 at >= 15V.Impedance: Each channel features a high input impedance of 6.4 kOhm for precise readings.Filtering Options: Adjust software filtering up to 25ms or utilize 100ms hardware filtering for stability.Environmental and Physical PerformanceOperational Range: Perform efficiently between -10°C and 55°C during horizontal installations without derating.Protection Rating: This device meets IP20 standards to ensure protection within controlled industrial environments.Vibration Resistance: The module withstands 1 gn at frequencies ranging from 8.4Hz to 150Hz.Shock Resilience: The design handles significant impacts of up to 15 gn for 11 ms.Electromagnetic Compatibility: It conforms to strict IEC 61000-4 standards to prevent common electrical interference issues.Installation GuidelinesMount the Schneider TM5SDI12D horizontally on a standard DIN rail for maximum thermal efficiency.Ensure that you maintain a vertical installation environment strictly between -10°C and 50°C.Connect your field devices using a secure 1-wire configuration to minimize complex wiring overhead.Verify the 500 Vrms AC isolation between the channel and the bus before powering up.Consult the technical manual for specific wiring diagrams to avoid common ground loop errors.Logistics and PackagingWe ship the Schneider TM5SDI12D globally using reliable carriers like FedEx, UPS, or DHL.The package includes one high-performance input module protected by industrial-grade anti-static packaging materials.Our team inspects every unit for physical integrity before dispatching it to your specified facility.Please verify the contents upon arrival to ensure the unit arrived in perfect condition.Frequently Asked QuestionsQ: Can the Schneider TM5SDI12D handle high-speed pulse inputs effectively?A: The hardware filtering of 100ms limits this module to standard status sensing rather than high-speed pulsing.Q: Should I use this for source or sink input logic applications?A: This specific module supports sink input logic; ensure your field sensors match this configuration requirement.Q: How do I handle potential noise interference in my control panel?A: Use shielded cables and follow the recommended electromagnetic compatibility guidelines provided in the manual.Q: Is it possible to use this module with PacDrive LMC controllers?A: Yes, this unit offers full compatibility with PacDrive LMC Pro, Pro 2, and Eco controllers.Copyright © 2026 Oiltech Controls Limited. All rights reserved. Original Source: https://www.oiltechcontrols.com/ All rights reserved.
