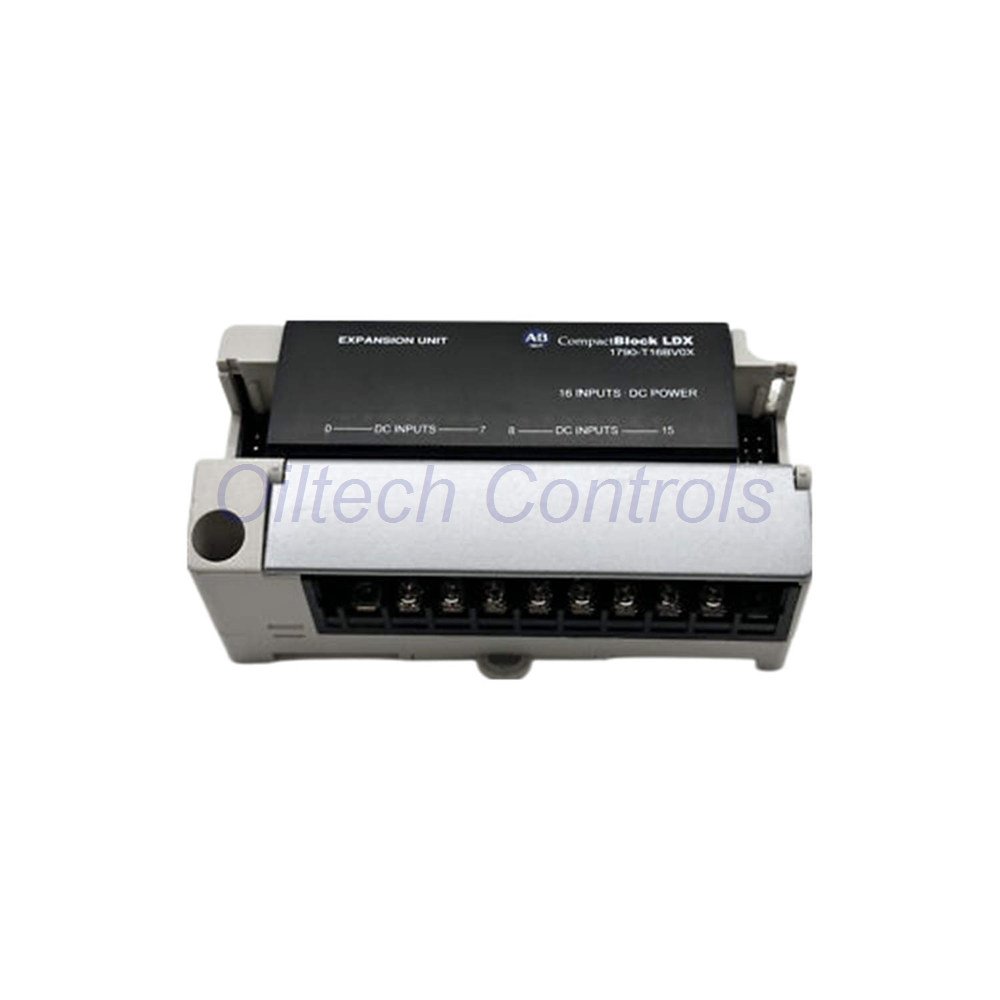

1790-T16BV0X Allen-Bradley CompactBlock LDX 16Pt Input Base Module

Product IntroductionThe Allen-Bradley 1790-T16BV0X belongs to the high-performance CompactBlock LDX I/O series.This 24V DC 16 Universal Input Base Module provides flexible sink or source configuration options.It interfaces field sensors directly with your industrial automation network.The rugged design ensures reliable data acquisition in harsh industrial control environments.Engineers choose this module for its compact footprint and reliable DeviceNet communication capabilities.Technical SpecificationsBrand: Allen-Bradley (Rockwell Automation)Model: 1790-T16BV0XSeries: CompactBlock LDX I/OModule Type: Universal Input Base ModuleInputs per Module: 16 points (sinking or sourcing)Measuring Range: 9.6V DC minimum, 24V DC nominal, 28.8V DC maximumSensitivity Thresholds: On-state at 9.6V DC min, Off-state at 5.0V DC maxOn-State Current: 8 mA maximum per channel @ 28.8V DCInput Impedance: 4.8 KΩ nominalFrequency Response: Fast hardware filtering optimized for general industrial digital inputsLinearity: High-precision voltage thresholds ensure clean state transitionsResolution: 1-bit per point across 16 distinct channelsDeviceNet Supply Voltage: 24V DC nominal (range: 11 to 28.8V DC)Power Dissipation: 1.2 W maximum @ 28.8V DCAnti-Interference Capability: Photocoupler isolation blocks electrical noise effectivelyIsolation Voltage: 1250V AC RMS between I/O and logic circuitsDeviceNet to Logic Interface: Non-isolatedDeviceNet Power: Non-isolatedTemperature Range: Standard industrial operating temperature limitsEnvironmental Tolerance: Heavy-duty casing resists severe manufacturing vibrationsCompatibility and ApplicationsThis CompactBlock LDX module integrates seamlessly into any standard DeviceNet network architecture.It communicates directly with programmable logic controllers and industrial computers.Typical applications include conveyor control systems, packaging machinery, and automotive assembly lines.If you need integration advice, contact our engineering team at [email protected] today.Installation and CommissioningMount the module securely onto a standard DIN rail.Use the integrated M3.0 screw terminal block for all field wiring connections.Tighten terminal screws to a maximum torque of 7 lb-in.Deploy only copper or copper-clad aluminum conductors for wiring.Connect the non-polarized common terminals using the 8 points/8COM configuration.Diagnostics and MaintenanceMonitor system health using the 16 green input status indicators.LEDs illuminate immediately when an input channel receives valid on-state voltage.Check DeviceNet power lines if the module fails to communicate.The photocoupler isolation simplifies troubleshooting by protecting internal logic from field faults.Shipping and WarrantyPackage List: One brand new Allen-Bradley 1790-T16BV0X module in original packaging.Warranty: Full 12-month warranty covers all manufacturing defects.Shipping Carriers: Express delivery available worldwide via FedEx, UPS, and DHL.For urgent shipping requests, reach us via WhatsApp at 86 158 8020 0923.Frequently Asked Questions (FAQ)Q: Can I mix sinking and sourcing inputs on the same module?A: Yes, the 8 points/8COM non-polarity common design allows flexible wiring configurations.Q: Does the DeviceNet connection require separate isolation?A: No, the DeviceNet to logic interface is non-isolated.Q: What is the maximum voltage this module can handle?A: The input channels tolerate up to 28.8V DC maximum.Product Manual DownloadGet the complete technical manual to ensure proper installation and wiring.Download the official Allen-Bradley 1790-T16BV0X installation guide.Access detailed wiring schematics for sinking and sourcing configurations.Review comprehensive DeviceNet network configuration steps.Copyright © 2026 Oiltech Controls Limited. All rights reserved.Original Source: https://www.oiltechcontrols.com/ All rights reserved.
