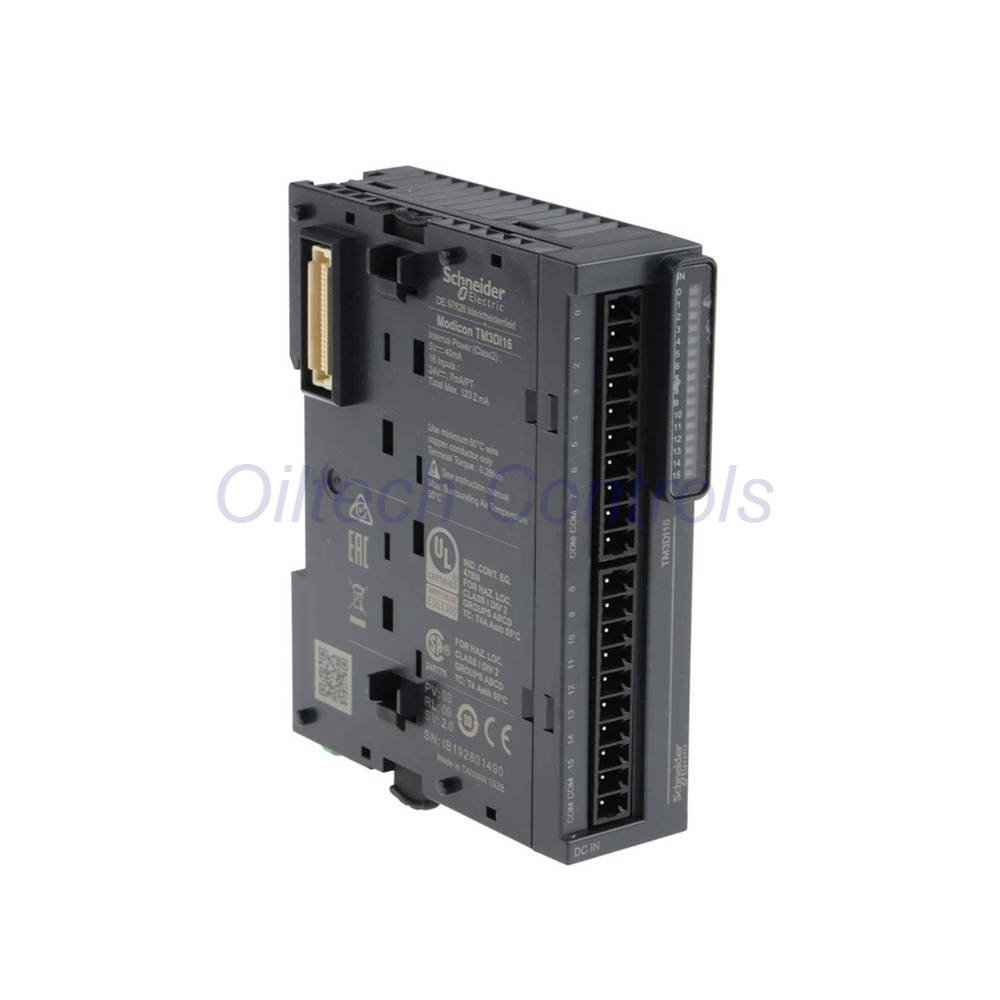

TM3DI16 Schneider Electric Modicon TM3 Discrete Input Module

Schneider Electric TM3DI16 Modicon TM3 Discrete Input ModuleOiltech Controls delivers premium automation components to enhance your industrial control systems. Engineers select the TM3DI16 discrete input module to expand control capabilities on modern PLC platforms. This high-density module provides reliable signal detection for factory equipment and specialized machinery alike.Core Technical SpecificationsBrand and Model: Schneider Electric TM3DI16 Modicon TM3 expansion moduleInput Channels: 16 discrete inputs conforming to IEC 61131-2 type 3 standardsInput Voltage and Current: 24 VDC rated voltage with 7 mA current consumption per inputLogic Type: Sink or source configuration options support positive and negative wiring setupsResponse Time: Rapid 4 ms turn-on time paired with 4 ms turn-off time performanceOperating Temperature: Horizontal installation supports -10 to 55 °C ambient air temperature rangeEnvironmental Protection: IP20 rated housing with protective cover installed safely in placeAnti-Interference Capacity: Electrostatic discharge resistance reaches 4 kV contact and 8 kV air dischargeBus Current Draw: Maximum 40 mA at 5 VDC via bus connector when state turns onHardware Installation GuideMounting Support: Mounts securely on standard top hat type TH35-15 or TH35-7.5 DIN railsPanel Fixing Option: Plate mounting option using a dedicated fixing kit ensures robust panel attachmentElectrical Connection: Removable screw terminal block features a 3.81 mm pitch for input wiresWiring Capacity: Terminal block easily accepts standard copper cables up to 1.5 mm² wire sizeCable Restrictions: Unshielded cables must not exceed 50 meters for regular input channel connectionsIsolation Safeguards: Internal logic features 500 VAC insulation protection against high voltage spikesModule Dimensions: Compact build measures 90 mm height, 84.6 mm depth, and 27.4 mm widthShipping Packaging ListMain Module: One brand new genuine Schneider Electric TM3DI16 digital input expansion blockTerminal Block: One removable screw terminal connector piece for easy system field wiringReliable Courier Delivery: Worldwide express shipping services include premium options like Fedex, UPS, and DHLFrequently Asked QuestionsHow do engineers configure the input logic on this specific expansion module?You can configure the module channels as sink or source by altering the common terminal wiring.What internal power does the unit consume from the main controller bus?The module draws 40 mA at 5 VDC from the bus connection during the active on state.Which specific programmable logic controllers work seamlessly with this digital expansion hardware?This module offers full hardware compatibility with Modicon M221, Modicon M241, and Modicon M251 controllers.Selection Guide: Why choose this specific module over higher density digital options?This 16-channel layout offers the perfect balance between physical panel space savings and channel cost economy.The removable screw terminal block allows fast module replacement without disconnecting individual field wires.Type 3 input characteristics ensure excellent noise immunity when monitoring standard industrial proximity sensors.Corporate Contact InformationEmail Support: Send your technical inquiries directly to [email protected] for fast engineering feedback.Direct Hotline: Call our sales team or text us on WhatsApp: 86 158 8020 0923 now.Copyright © 2026 Oiltech Controls Limited. All rights reserved.Original Source: https://www.oiltechcontrols.com/ All rights reserved.
