TR Electronic CEV58M SSI Encoder | 33-Bit Programmable

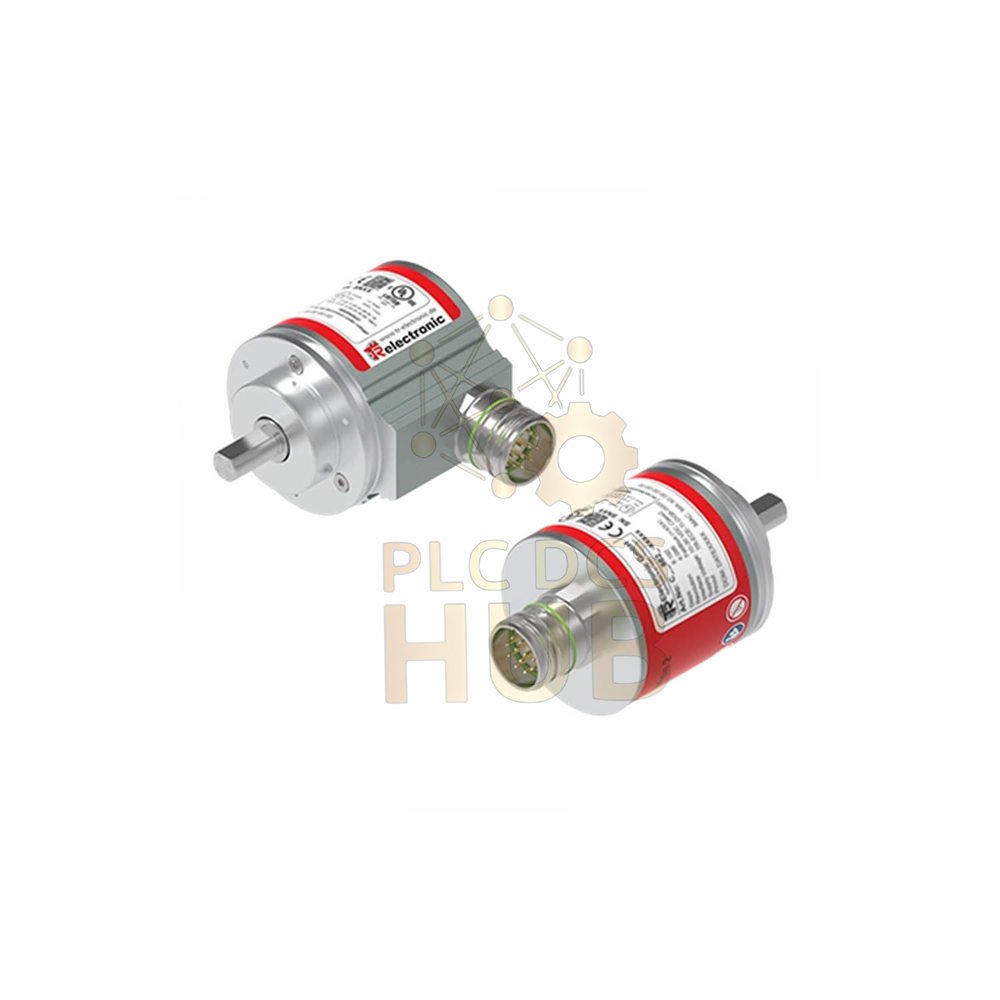

Description Product Overview TR Electronic CEV58M-SSI-1-D-1 is a high-precision rotary encoder. Specifically, this device combines single-turn and multi-turn measurement in one unit. Therefore, you get absolute position over many rotations without any need for homing. For example, it offers 33-bit total resolution with up to 32768 steps per turn. Moreover, the encoder handles up to 256000 revolutions. Furthermore, this encoder runs on 24 VDC (11 to 27 VDC range). Consequently, it draws only 80 mA when unloaded. As a result, the unit weighs between 0.3 and 0.5 kg. Key Features SSI interface with 80 to 1000 kHz clock frequency Programmable resolution and output format Maximum mechanical speed of 12000 rpm IP65 protection against dust and water jets 8 programmable push-pull outputs Short-circuit proof on all programmable outputs Technical Specifications Electrical Data Brand: TR Electronic Model: CEV58M-SSI-1-D-1 Nominal voltage: 24 VDC Voltage range: 11 to 27 VDC Nominal current: 80 mA (unloaded) UL/CSA approval: Complies with NEC Class 2 Resolution & Output Device type: Single-Turn and Multi-Turn combined Total resolution: up to 33 Bit Steps per revolution: up to 32768 Revolutions: up to 256000 Output capacity: up to 27 Bit SSI Interface SSI-Clock input: Optocoupler isolated SSI-Data output: RS-422, 2-wire Clock frequency range: 80 to 1000 kHz SSI-Mono time: 20 µs typical Incremental Interface (Optional) Square wave signals: K1± and K2± Pulses per turn: 1024 or 2048 Output driver: TTL RS-422 at 5 VDC Performance Data Internal cycle time: 250 µs Maximum mechanical speed: 12000 rpm Angular acceleration: up to 100000 rad/s² Moment of inertia: 2.5E-6 kg m² typical Start-up torque at 20°C: 2 Ncm Mechanical Specifications Shaft diameter options: 6 mm, 8 mm, 10 mm, 12 mm, or 3/8 inch Shaft load (axial): up to 50 N Shaft load (radial): up to 100 N Bearing life: ≥ 3.9E 10 revolutions At 6000 rpm and 60°C with 60% shaft load Environmental Ratings Working temperature: 0 to 60°C (standard) Optional range: -20 to 70°C Storage temperature: -30 to 80°C (dry) Relative humidity: 98%, non-condensing Protection class: IP65 standard Vibration resistance: ≤ 100 m/s² (sine, 50-2000 Hz) Shock resistance: ≤ 1000 m/s² (half sine, 11 ms) Immunity: DIN EN 61000-6-2 Emissions: DIN EN 61000-6-3 Programmable Functions Resolution adjustable via software Output code and format configurable Counting direction selectable Preset value programmable Limit switch settings adjustable Error signal configuration Parity check selectable Overspeed monitoring available Programming tool: TR-Soft TRWinProg External Inputs & Outputs F/R input: Controls counting direction Preset input: For electronic adjustment Logic level: “0” below 2V, “1” at supply voltage Number of outputs: 8 programmable Output stages: Push-pull Output level: Supply voltage, up to 50 mA Short-circuit proof: Yes Movement Status Signals Movement status indicator available Direction signal output Error signal for diagnostics Parity check for data integrity Installation Guide First, mount the encoder on a clean, flat surface. Then, use flexible couplings to avoid shaft misalignment. Next, connect SSI clock and data lines with shielded cables. Also, keep cables away from high voltage sources. After that, tighten the mounting flange screws evenly. Finally, do not exceed the specified shaft loads. Commissioning & Maintenance First, download TRWinProg software from TR Electronic. Next, connect via SSI interface to set parameters. Then, program resolution, counting direction, and preset values. After programming, test the encoder at low speed first. For maintenance, check shaft alignment every 6 months. Also, clean the housing with a dry cloth only. Finally, no lubrication is needed for standard use. Compatibility This encoder works with any SSI master controller. For instance, it is compatible with Siemens, Rockwell, and Beckhoff PLCs. Additionally, optional incremental outputs provide dual feedback. Finally, use TRWinProg on Windows-based computers for programming. Certifications CE marked for European markets UL/CSA approved per NEC Class 2 IP65 tested for harsh environments Complies with DIN EN 61000-6-2 and -6-3 Package Contents TR Electronic CEV58M-SSI-1-D-1 encoder (1 unit) Mounting flange with screws Sealing ring for IP65 protection Quick start guide TRWinProg software download link Warranty & Shipping We offer a 12-month warranty from the shipment date. Specifically, this covers manufacturing defects only. However, normal wear and misuse are not included. We ship worldwide via FedEx, UPS, and DHL. Therefore, express delivery takes 3 to 7 business days. Furthermore, we provide tracking numbers within 24 hours. Typical Applications Precision positioning on CNC machines Speed control for conveyor systems Length measurement on cut-to-length lines Robot joint angle feedback Printing press registration control Packaging machine indexing Diagnostic Capabilities Built-in error signal output for fault detection Parity check verifies data transmission integrity Movement status signal shows shaft rotation Overspeed monitoring triggers alerts TRWinProg displays real-time position data Frequently Asked Questions (FAQ) 1. What does “Single-/Multi-Turn” mean for this encoder? Single-turn measures position within one full rotation (360°). However, multi-turn counts total revolutions up to 256000 turns. Therefore, this combination gives you absolute position over many rotations. 2. Can I use this encoder at temperatures below 0°C? Yes, but you need the optional -20°C to 70°C version. Specifically, the standard version works from 0°C to 60°C only. Therefore, check your part number or ask us for the low-temperature option. 3. How do I set the resolution and other parameters? First, download TRWinProg software from TR Electronic. Next, connect the encoder to your computer via SSI. Then, the software shows all programmable settings. Finally, save your configuration to the encoder’s memory. 4. What happens if I exceed the maximum shaft load? Unfortunately, the bearing life will decrease significantly. As a result, you may see premature wear or binding. Therefore, always stay within 50 N axial and 100 N radial loads. Also, use flexible couplings to reduce stress. 5. Is this encoder short-circuit proof on all outputs? Yes, the 8 programmable push-pull outputs have short-circuit protection. However, the SSI data output and power input do not have this protection. Therefore, double-check your wiring before powering on. 6. Which shaft diameter option should I choose? First, match your existing coupling or motor shaft. Available sizes include: 6 mm, 8 mm, 10 mm, 12 mm, and 3/8 inch. Therefore, measure your shaft carefully. Then, choose the same size for a direct fit. 7. Can I get both SSI and incremental outputs on one encoder? Yes, the incremental interface is an optional feature. Consequently, you get square wave signals (K1±, K2±) along with SSI data. However, specify this option when ordering if you need both outputs. Selection Guide Choose CEV58M-SSI-1-D-1 when you need absolute SSI feedback with high resolution. Pick this model for single-turn and multi-turn measurement in one device. Select the standard temperature version (0 to 60°C) for indoor factory use. However, order the optional -20 to 70°C version for cold storage or outdoor applications. Additionally, add the incremental output option if you need speed feedback and position data. For shaft sizes, match your existing coupling exactly to avoid adapter costs. Finally, avoid this encoder if you need higher than 12000 rpm or Profibus/EtherCAT interfaces. For inquiries or volume pricing, contact us at 86 158 8020 0923 (WhatsApp). Need vibration monitoring for your rotating machines? For example, check our 3300 XL 11 mm Proximity Probes and 11 mm Proximity Probes for complete machine protection. Copyright © 2026 PLCDCS HUB Limited. All rights reserved. Original Source: https://plcdcshub.com/ Partner: Powergear X Automation Limited Oiltech Controls Limited
