Spiral Tree Mounting System STL

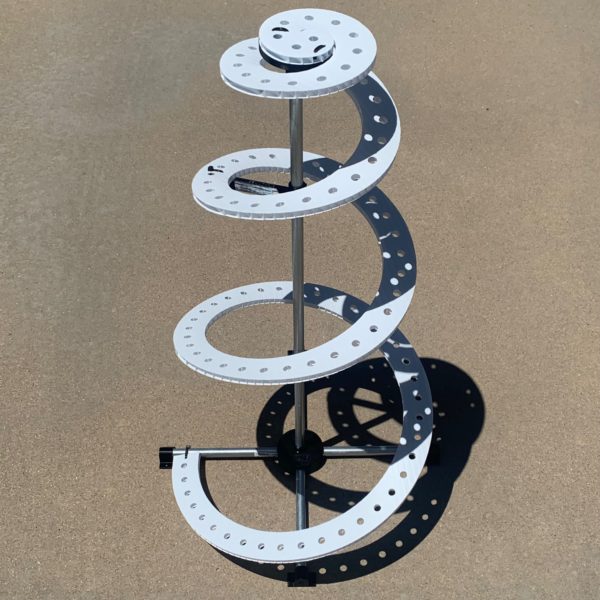

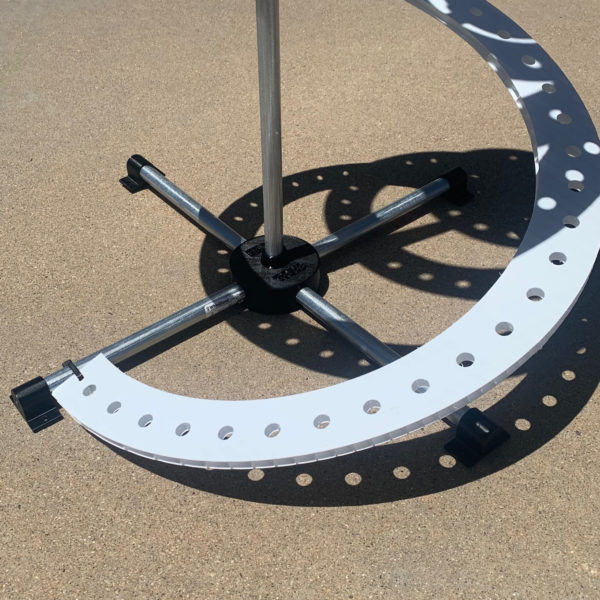

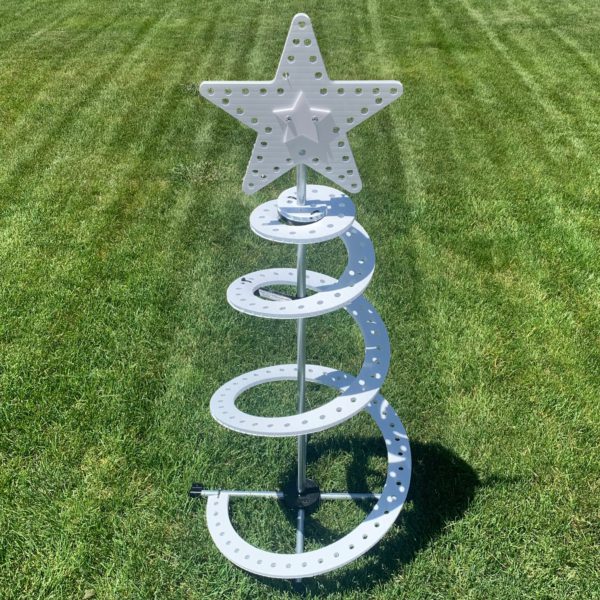

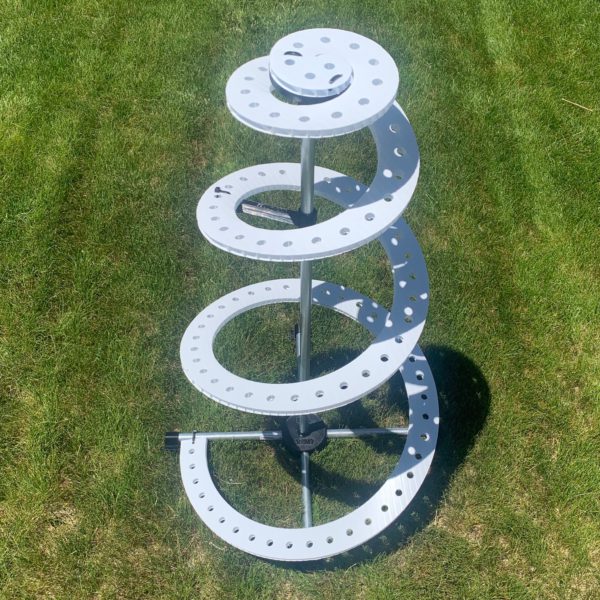

Through testing we found that a 36″ piece of EMT conduit is the perfect height for the vertical EMT section on the trees and 10″ works well on the legs, however you don’t have to follow the dimensions listed here and can make the tree any dimension you choose. The legs can be made any length you want, but about 10″ seems to be a pretty good size. If you plan on installing the Star 12 with the spiral tree then you will want to drill out the coro to allow the EMT to run through the top. We recommend making the vertical EMT on the star version 45″ – 47″ depending on preference. Ten #8 x 1/2″ sheet metal screws are required per tree to secure the EMT legs to the bottom hub, outer leg caps and to secure the bottom and top hubs to the vertical EMT. A single 8/32 x 3″ machine screw is used to attach the stabilizing arm to the EMT. Predrill a 3/16 hole completely through the vertical EMT 26″ up from the bottom for the stabilizing arm. Then slide the stabilizing arm sleeve over the EMT and align the holes on the printed part with the predrilled holes on the EMT. Insert the 8/32 x 3″ machine screw from the flat slide of the sleeve and thread it onto the stabilizing arm. The text on the stabilizing arm should be pointed up and should be located between pixels 65 and 66 on the tree.
